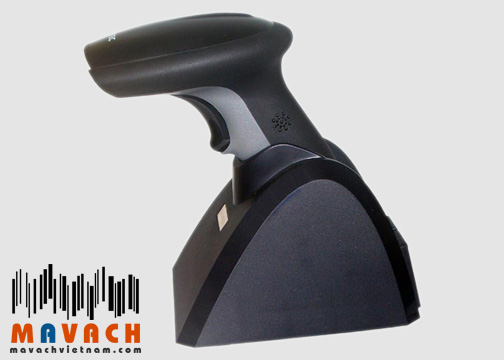

Đầu đọc mã vạch Riotec LS6000B (LS-6000B)

• Model Name

• Description

• Light source

650 nm Laser Diode

• Depth of field (40 mils)

Up to 600 mm

• Scan speed

100 scans/sec

• Best resolution

0.1 mm (4mils) – Code 39

• Print contrast

45% or more

• Reading angle

38°

• Reading indicator

blue/red/orange LED & beeper

• Symbologies

UPC/EAN/JAN, Code 39, Codabar, ITF 2/5, Code 128, Code 11, Code 93, MSI, …

• Input voltage

5 VDC ± 0.5V

• Current – operating

115mA

• Radio Range (open area)

90M max. (class II only)

• RF Frequency

2.4GHz

• Regulatory

FCC Class A & CE & IEC60825 class II

• Dimension (L * W * H)

97x 70 X 175 mm

• Weigh

230 g +/- 5 g (including battery)

• Temperature-operation

0℃ to 50℃ (32℉ to 122℉)

• Temperature-storage

-20℃ to 60℃ (-4℉ to 140℉)

• Humidity-operation

10% to 85% relative humidity, non-condensing

• Humidity-storage

5% to 95% relative humidity, non-condensing

• Light level

Sun Light Up to 80000 Lux

• Shock

1.2 m drop onto concrete

• 4 mils

65 ~ 90 mm

• 5 mils

50 ~ 125 mm

• 13 mils

40 ~ 250 mm

• 20 mils

40 ~ 350 mm

• 40 mils

60 ~ 600 mm
